TNT
High-load automated plate storage system – up to 10 t per cassette with space-efficient “bookshelf” design
-
InformationTechnical specificationsBenefits
The TNT plate storage system from Matter is a fully automated, high-load storage solution for thick metal plates, large-format sheets, and other heavy, palletized materials. Each cassette is designed for extreme loads of up to 10 t, ensuring safe, precise, and reliable storage even in demanding industrial environments.

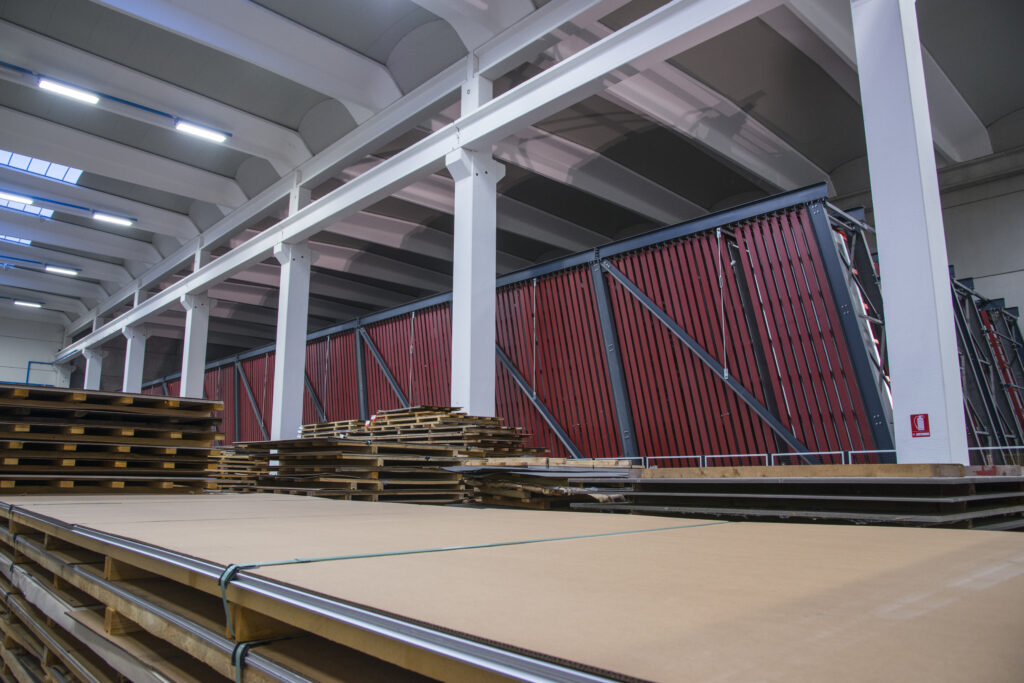

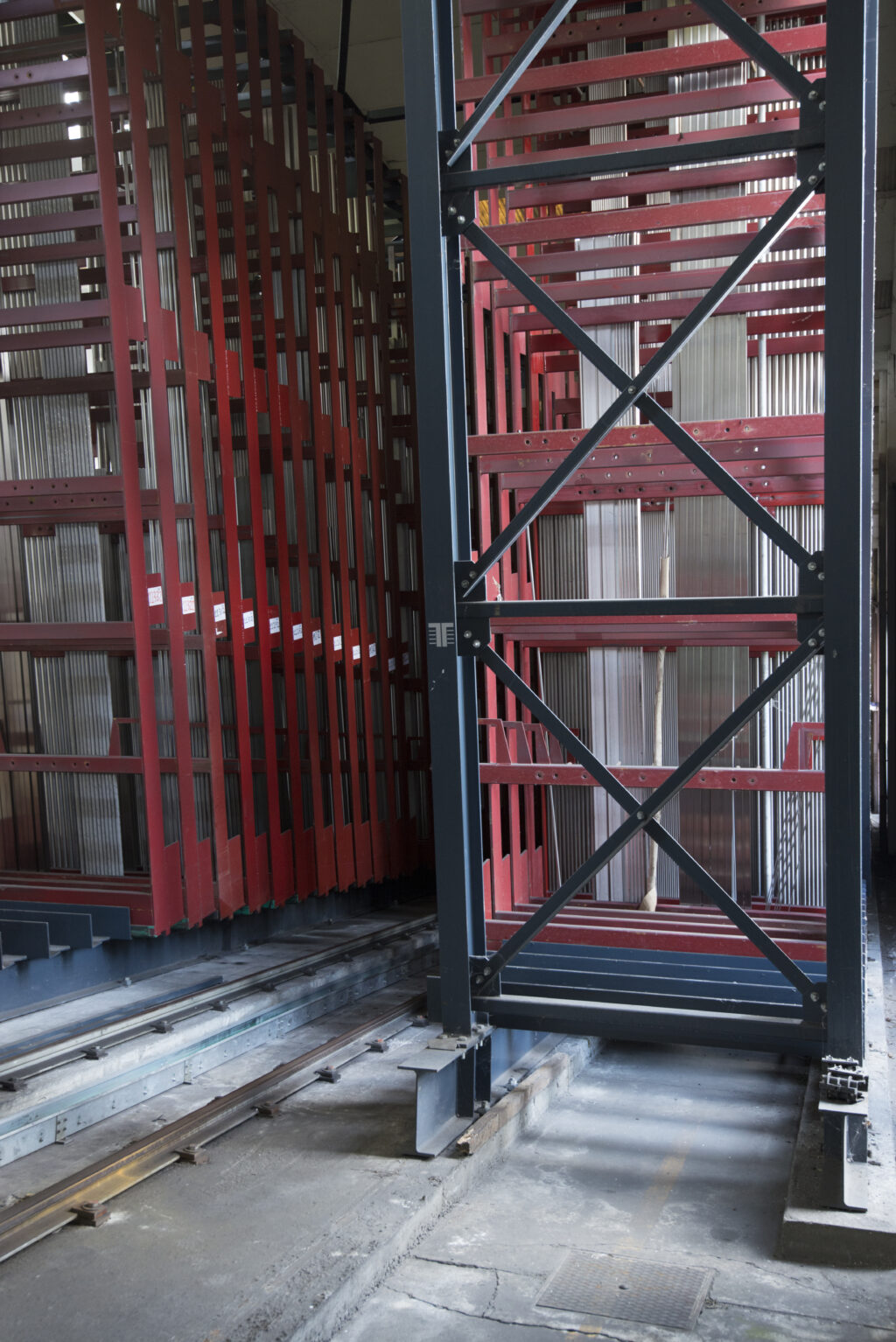

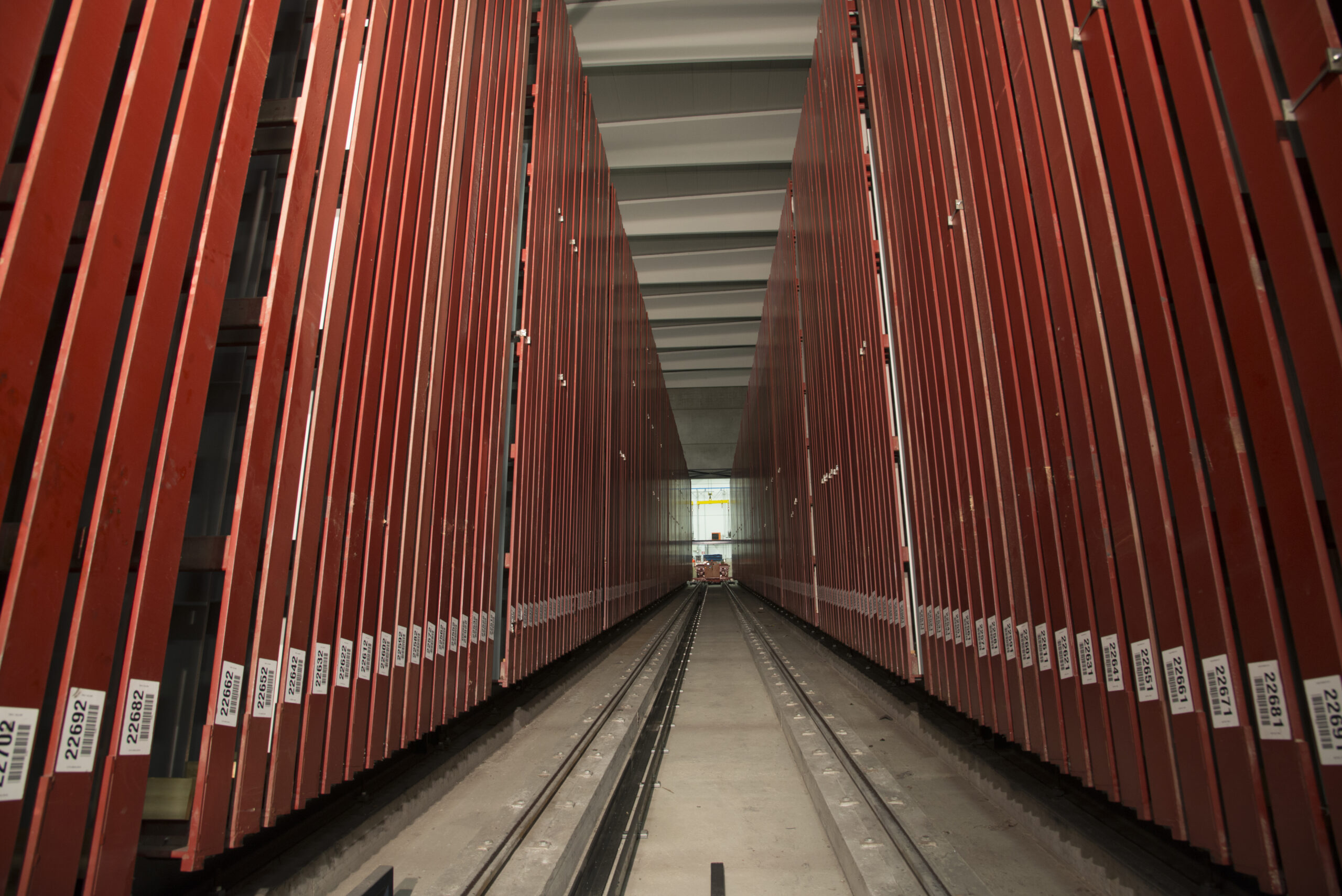

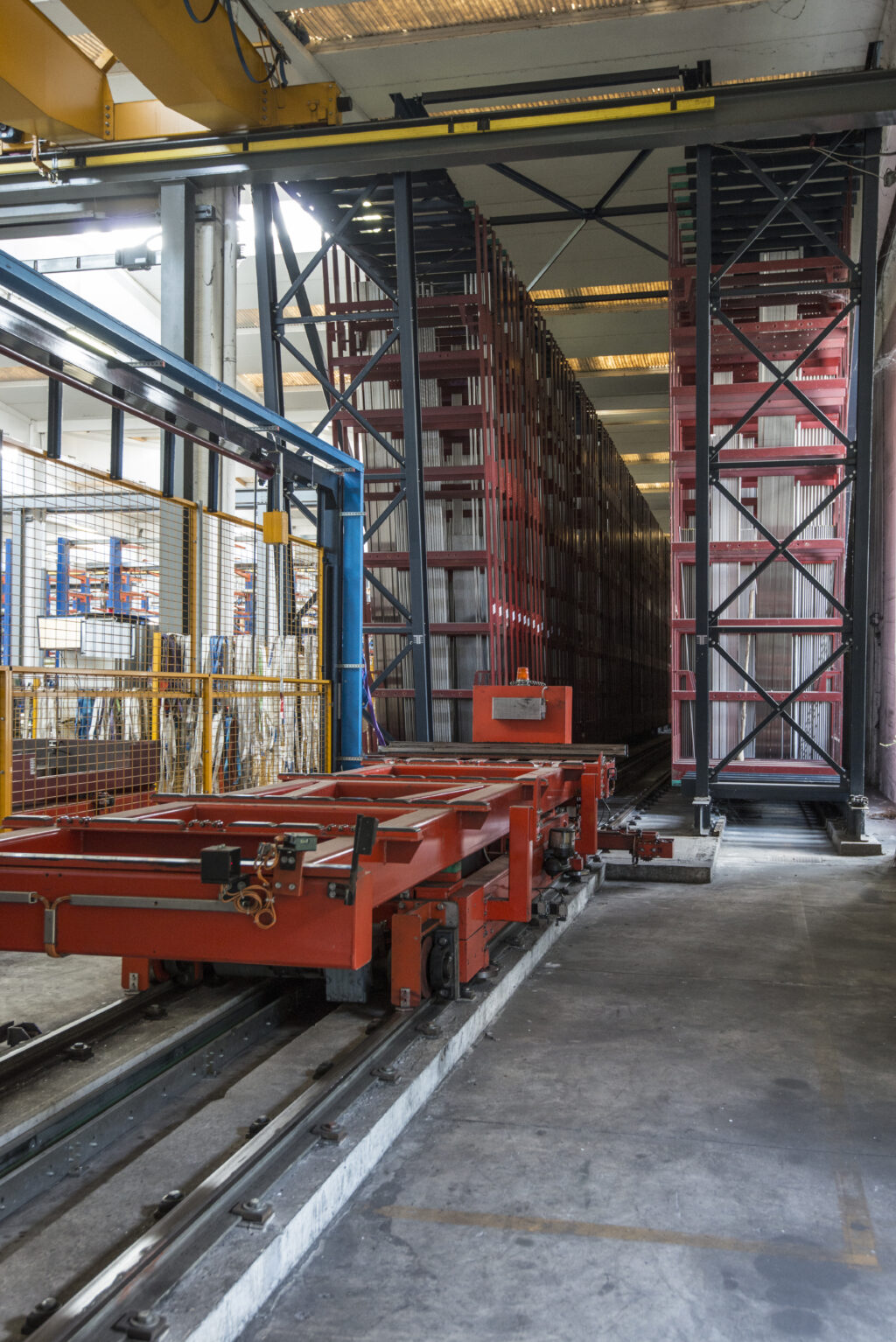

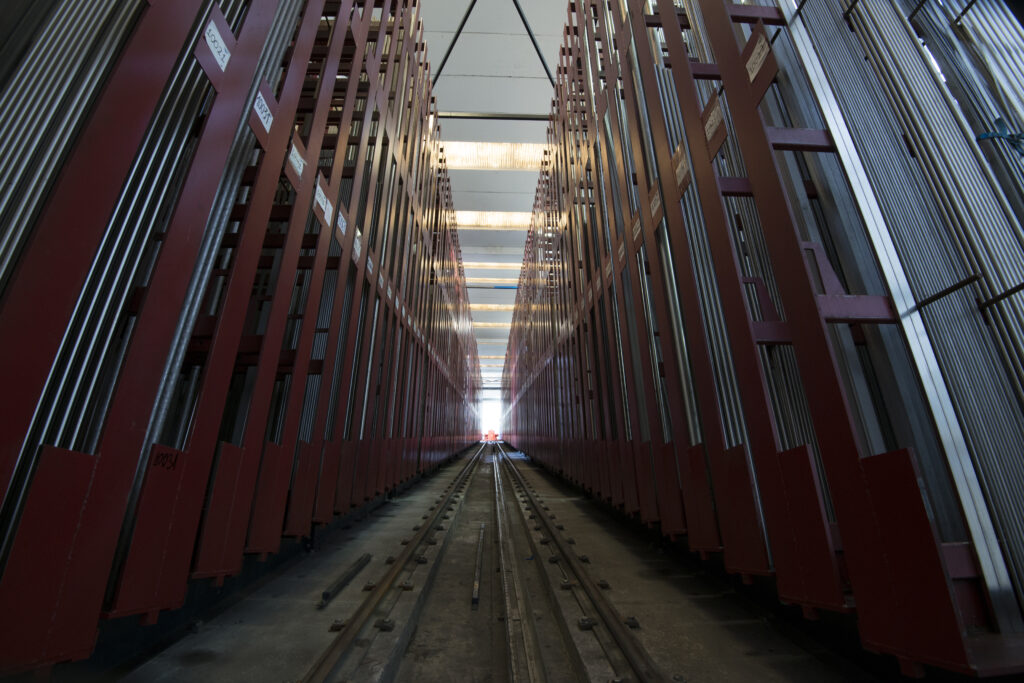

The high-density, horizontal “bookshelf” storage architecture maximizes available space, even for bulky or heavy materials. A shuttle with a tilting table moves cassettes precisely along floor guides between storage positions and IN/OUT stations, ensuring fast, accurate, and error-free handling.
With machine-independent interfaces, modular design, and flexible cassette configurations, the system can be seamlessly integrated into existing production, cutting, or logistics processes. The TNT is particularly suitable as buffer storage between production and cutting processes or in combination with other storage solutions (e.g., honeycomb storage).
Ideal for metal and steel distributors as well as manufacturing facilities that need to store heavy plates, large-format sheets, or palletized materials safely, automatically, and space-efficiently.
System height 10 m Storage locations 300 Perfromance 20 cycles/h Max. driving speed 1 m/s Max. pulling speed 0,3 m/s Stock length 8 m Load carrier cassettes Payload up to 10 t per cassette Silo construction no Software yes System integration yes - Extreme load capacity: Up to 10 t per cassette for heavy-duty applications
- High-density storage: Space-efficient, horizontal “bookshelf” design maximizes available floor space
- Buffer functionality: Supports uninterrupted material flow between production and cutting processes. Ideal as a buffer storage solution in combination with other systems (e.g., honeycomb storage systems)
- Automated & reliable: Shuttle system ensures fast, precise, and error-free handling
- Flexible material handling: Suitable for thick plates, large sheets, and palletized heavy goods
- Machine-independent: Seamless integration into existing production, cutting, and logistics processes
- Modular & scalable: Adapts to growing material volumes and changing requirements
- Robust industrial design: Built for continuous operation under heavy loads
