MATT BOX
Compact tower storage systems for plates, semi-finished products, finished products and tool components - standardized and quickly installed.
__ Our tower storage systems offer space-saving, expandable solutions for sheets, plates, panels or palletized flat material. The systems integrate flexibly into production environments, ensure fast access, structured warehouse organization and ergonomic handling and form the ideal first automation step for flat goods warehouses close to production.
-
InformationTechnical specificationsBenefits
Matter’s MATT BOX tower storage system offers a compact, standardized solution for sheets, plates, pallets, semi-finished products and finished products. Due to its modular design, it adapts flexibly to hall sizes and types of material. Fully automated processes enable fast, safe and efficient storage and removal. The optional machine connection allows seamless integration in cutting and production lines. The automatic anti-fall system reliably protects material and operators.
Ideal for compact manufacturing sites, contract finishers or smaller production sites as well as buffer warehouses in large manufacturing facilities.
System height 15 m Storage locations 300 Performance 25 cycles/h Max. lifting speed 0,5 m/s
Max. driving speed 0,3 m/s
Storage length
6 m Load carriers
cassettes Cassette payload 5.000 kg Silo design
yes Software yes System integration yes - Near-Production storage:
short transport distances for efficient material handling - Modular & flexible:
Suitable for hall sizes up to 25 m in heightand width and adaptable to different types of materials - Fully automated & safe:
Cassette handling up to 3 t, maximum operational reliability - Quick implementation time:
Standardized modules enable short delivery and installation times - Machine integration:
Optional for lasers, saws, or CNC systems - Anti-fall system:
protects both the material and the operator
- Near-Production storage:
-

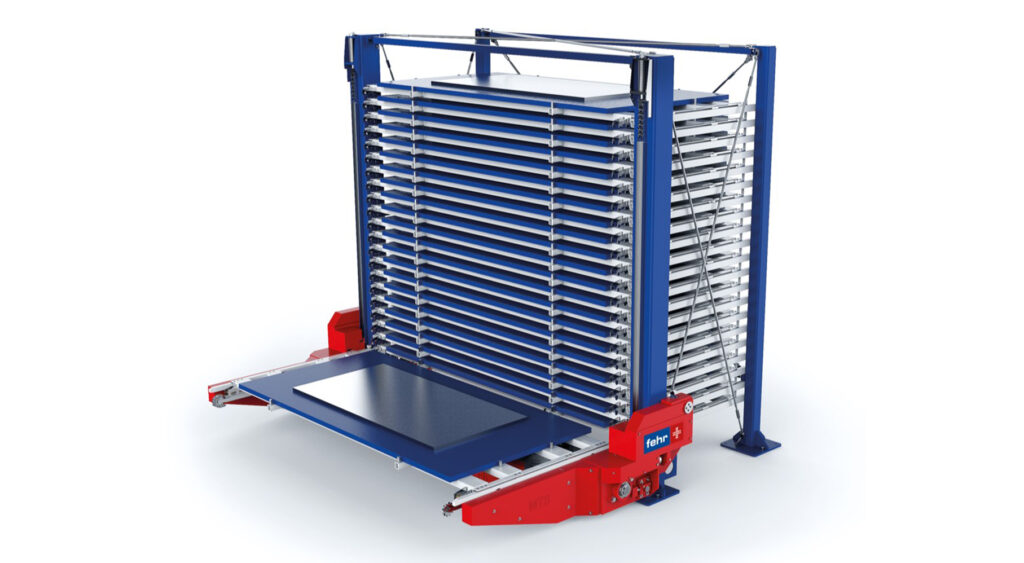

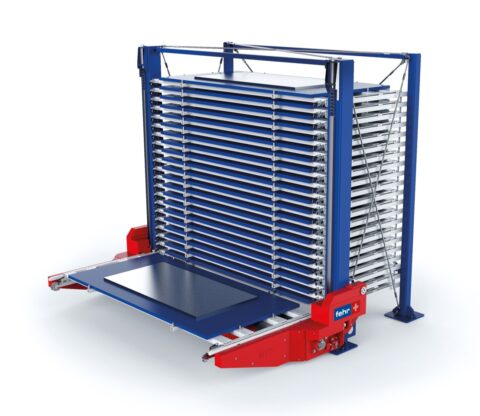

Ergoline
Tower storage for flat goods in small quantities in a compact space – the perfect buffer storage solution for CNC, laser, or sawing lines
InformationTechnical specificationsBenefitsThe Fehr Ergoline tower storage system for flat goods offers a space-saving, ergonomic and production-oriented solution for sheets, plates and large-format flat materials. With 30 cassettes, it combines high storage capacity with minimal footprint and is suitable for small and large production environments. The modular architecture enables seamless integration into existing halls, even in confined or unfavorable space conditions. Ergonomic operation reduces physical strain, increases process reliability and enables efficient material flows. Clear warehouse organization, fast access times and high material availability ensure smooth processes between warehouse, cutting and further processing. With a short installation and an overall project period of around four months, companies receive a flexible, cost-effective and instantaneous solution for flat goods.
Optimal as central buffer warehouse in front of laser, saw or CNC lines, ideal for sheet metal processing, metal processing, manufacturers of plastic plates and industrial production.
System height 8 m Storage units up to 30 Max. lifting speed 15 m/min Max. pulling speed 12 m/min Load carrier cassettes Cassette payload up to 3.000 kg Combined Inbound/Outbound Processing yes Silo construction yes - Maximum space efficiency:
Compact design makes optimum use of the hall area. - Fast access & high material availability:
Clear storage structure for efficient operations. - Ergonomic, low manpower operation:
reduces stress and faults, increases work safety. - Flexible integration:
adapts to any hall geometry, even areas that are difficult to access. - Fast implementation & cost-efficient:
installation in approximately four months, fast commissioning. - Versatility:
Gently structured storage of different types of long or flat goods.
